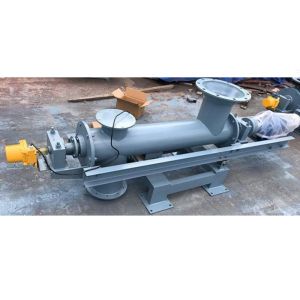

Screw dosing and filling machine for Building Materials Industry
Product Working Principle:
Spiral weighing quantitative feeder is used for quantitative feeding of bulk materials. The feeding process is spiral rotation and continuous feeding. The materials from the user's feeding bin or other feeding equipment are transported and weighted through the weighing bridge. Detection
At the same time, the speed sensor screw installed at the end performs speed detection; the detected weight signal and speed signal are sent to the weighing controller for calculus processing and display the instantaneous flow rate in tons per hour and the rate in tons Cumulative amount.
Technical Parameter:
1. Measurement accuracy: better than 1%
2. Control accuracy: better than 2%
3. Weighing range: 0~100t/h
4. Screw speed: 40~85r/min
5. Spiral diameter: Φ100~Φ400
6. Power supply: Control system: single-phase 220V±10%, 50HZ
Power system: three-phase 380V±10%, 50HZ
7. Use environment:
Temperature: minus ten degrees to forty degrees Celsius
Humidity: 5—90%
Location: where there is no strong electromagnetic field and strong vibration
System Features:
1.The spiral weighing system is mainly composed of a steady flow feed screw, a weighing bridge, a reduction motor, a weighing sensor, a speed sensor, a weighing control instrument and an electronic control system, etc. The weighing bridge is a lever type, and its lever fulcrum adopts a trunnion It is not affected by corrosion and external factors on the measurement accuracy; the speed sensor is placed on the non-driving end of the spiral body.
2. Name: Electronic Spiral Scale
3. Uses: building materials, metallurgy, electric power, chemical industries and other industries
4. Features: strong wear resistance and long service life
Professional Standardized Order Process:
Step 1. Pre-sales advice
Step 2. Proofing and sending
Step 3. provide plan
Step 4. Inspect the factory
Step 5. signing the contract
Step 6. Equipment manufacturing
Step 7. Packing out
Step 8. Receiving inspection machine
Step 9. After-sales service
